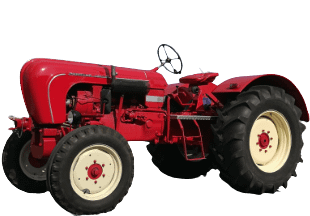

The Master 409 appeared in 1962 as the last new model at Porsche Diesel. The engine had the
The 3.5 liter machine and was fitted with the same transmission as the very first Master, the 408. This ZF transmission featured seven forward and one reverse gears. Optionally, 28 km/h could be achieved with an overdrive version of this transmission.

At the general end of production at Porsche Diesel in 1963, just under 50 of this version were manufactured.

As standard the Porsche Master 409 was equipped with a crankshaft with five bearings, a Porsche centrifugal variable speed governor, a gear pump-controlled pressure lubrication and a radial fan with thermostat control.

The Porsche Master 409 was equipped with a clutch-independent front engine PTO. It could optionally be supplemented with a belt pulley.

The driver’s platform was accessible via a front step. The driver’s parallelogram seat had full suspension. A rain cover, a heater and a seat for the passenger were optionally available.
